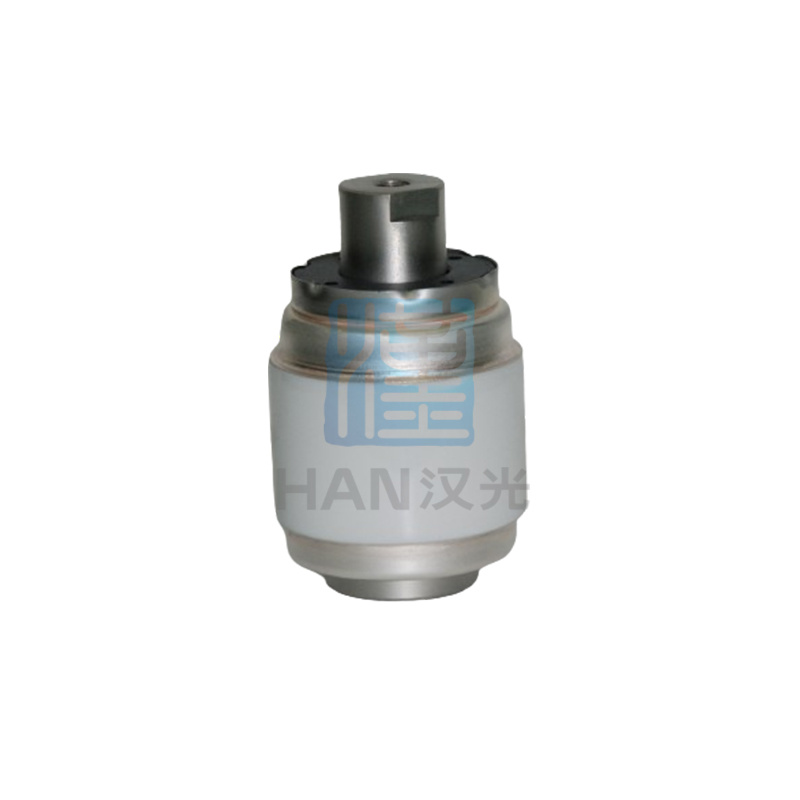

TJ030KY Vacuum Interrupter for Vacuum Contactor
Classification:
Model: TJ030KY
Parameter: 1.14KV 630A
Rated breaking current The Vacuum Interrupter is a critical component in Vacuum Contactors, designed to ensure safe, efficient, and maintenance-free switching in medium-voltage applications.
Details Introduction
|
No. |
Technical Data |
Unit |
Parameter Value |
|
1 |
Rated voltage |
kV |
1.14 |
|
2 |
Rated current |
A |
630 |
|
3 |
Rated frequency |
Hz |
50/60 |
|
4 |
Rated short-time power frequency withstand voltage (1min) |
kV |
10 |
|
5 |
Rated lighting impulse withstand voltage (peak) |
kV |
40 |
|
6 |
Rated breaking current |
kA |
3.2 |
|
7 |
Contact closing force due to bellows and atmosphere |
N |
60±20 |
|
8 |
Counterforce at rated contact stroke |
N |
90±30 |
|
9 |
Circuit resistance at rated contact force |
µΩ |
≤60 |
|
10 |
Rated added external contact final force |
N |
220±20 |
|
No. |
Dimension Data |
Unit |
Value |
||
|
1 |
Diameter |
mm |
¢52±1 |
||
|
2 |
Install height |
mm |
84±2 |
||
|
3 |
External insulating protection medium |
-- |
SF6,Insulating Oil,Silicon etc. |
||
Vacuum Interrupter for Vacuum Contactor – Reliable & High-Performance Switching Solution
The Vacuum Interrupter is a critical component in Vacuum Contactors, designed to ensure safe, efficient, and maintenance-free switching in medium-voltage applications. Utilizing advanced vacuum interruption technology, it extinguishes arcs quickly, enhancing electrical system reliability and longevity.
Key Features & Benefits:
✔ Superior Arc Quenching – The vacuum interrupter’s sealed chamber eliminates arcing, ensuring fast and reliable current interruption.
✔ Long Service Life – Minimal wear and tear due to vacuum technology, reducing downtime and maintenance costs.
✔ Compact & Robust Design – Ideal for space-constrained installations while maintaining high dielectric strength.
✔ Eco-Friendly Operation – No harmful gases or byproducts, making it a sustainable choice for modern power systems.
✔ Wide Compatibility – Perfectly integrates with vacuum contactors in industrial, mining, and utility applications.
Applications:
- Motor control centers
- Power distribution systems
- Renewable energy systems
- Mining and heavy industrial equipment
Upgrade your electrical systems with our high-performance Vacuum Interrupter for Vacuum Contactors – where durability, efficiency, and safety meet cutting-edge technology!
